As the Umbrella integration spans several areas of your Active Directory (AD) configuration, it can be helpful to understand the flow of communication between each of the operational components. This can assist in troubleshooting and in ensuring that your environment is properly configured pre-deployment.

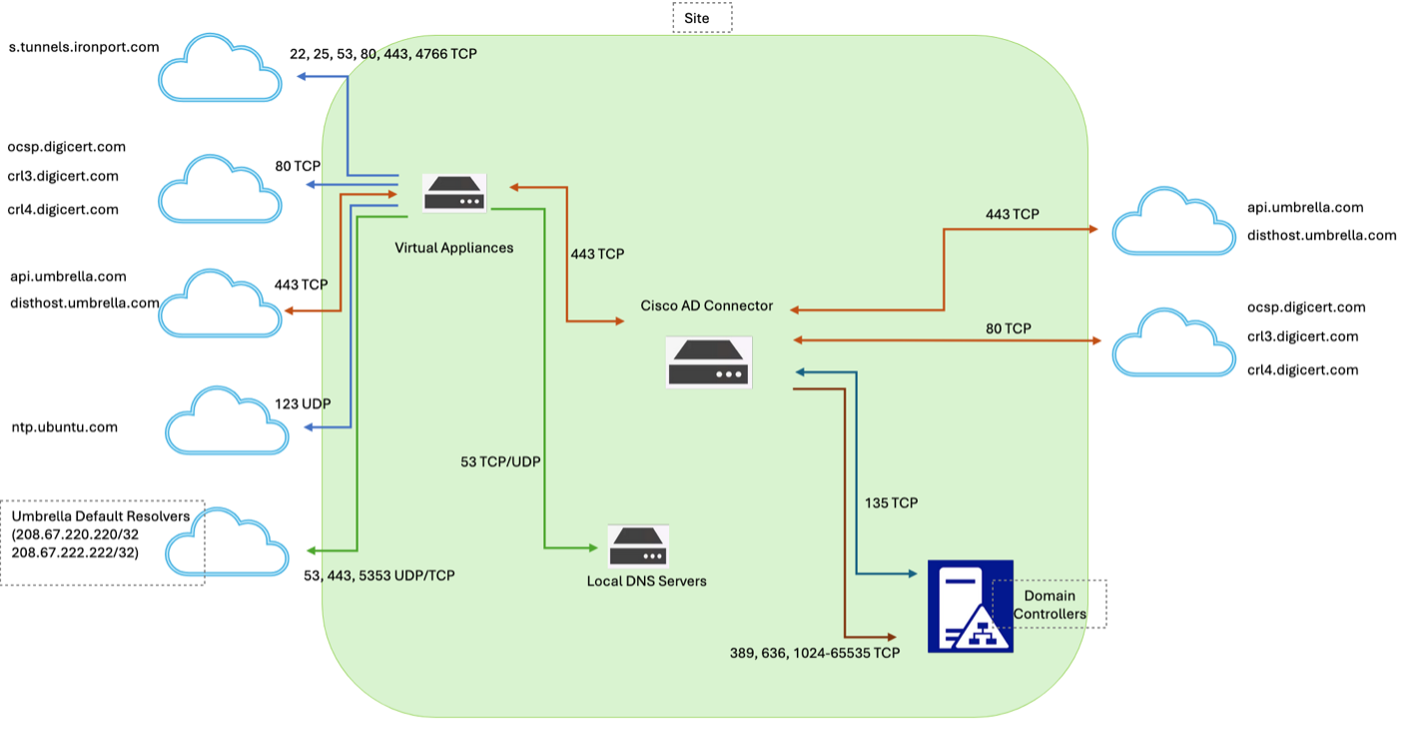

Communication Flow

The connector will first attempt to communicate to the domain controller over LDAPS and if unsuccessful, it will fall back to communicating over LDAP using Kerberos or NTLM, in that order.

The connector retrieves the AD users, groups, and computer details only. The necessary attributes are stored from each object, including the sAMAccountName, dn, userPrincipalName, memberOf, objectGUID, primaryGroupId (for users, groups and computers), and primaryGroupToken (for groups). Passwords or password hashes are not retrieved. This data is then uploaded to Umbrella for use in policy configuration and reporting. This data is also required for per-user or per-computer filtering. Note that the objectGUID is sent in hashed form.

The connector sends the AD data every 5-7 minutes if there are changes, using an HTTPS connection on port 443 TCP. It can take an hour or longer for changes to reflect on the Umbrella dashboard though.

The connector stores this data locally as well in .ldif files contained within C:\Program Files\OpenDNS\OpenDNS Connector\ADSync. To find out exactly what is being synchronized to Umbrella, you can look at these files. At install time, you have the option to turn off the local storage of .ldif files.

The connector constantly sends AD events to the virtual appliances (VAs) using port 443 TCP. This is a one-way communication; the appliances will not talk back to the connectors. By default, the connector sends information, including IP to username mappings, to the VA in unencrypted form. A pre-requisite for AD integration with the VA is that the connector and VA should communicate over a trusted network. If encryption of communication between the Connector and VA is required for compliance or other reasons, see Umbrella Virtual Appliance: Receiving user-IP mappings over a secure channel.

The connector communicates with the domain controllers/event log collector using RPC. In general, port 135 TCP is the standard port for RPC communication with domain controllers. The RPC communication also uses a randomly assigned ephemeral port between 49152 TCP and 65535 TCP.

Troubleshooting

The following firewall/ACL requirements ensure that AD Connectors can communicate with the Umbrella cloud services and on-premise components:

Port and Protocol
Source
Destination
Note

443/TCP

AD Connector

api.opendns.com (for syncing)
disthost.umbrella.com

  • Initial registration with the Umbrella API and the Umbrella dashboard.
  • Automatic updates
  • Health status reporting in Umbrella dashboard.

80/TCP
80/UDP

AD Connector

crl.comodoca.com
ocsp.comodoca.com
crl.usertrust.com
ocsp.usertrust.com

Required to maintain the Online Certificate Status Protocol (OCSP) and certificate revocation lists (CRL) portion of the SSL Revocation.

80/TCP

AD Connector

ocsp.digicert.com
crl3.digicert.com *crl4.digicert.com

Required for SSL Revocation list verification as part of the HTTPS handshake.

389/TCP
636/TCP

AD Connector

Domain controller/ domain

LDAP syncing

443/TCP

AD Connector

Virtual Appliances

Send information relating to login events and IP addressing. It's very important to note that this traffic occurs over 443/TCP but is not an SSL connection by default. Many IDS and IPS systems will flag this traffic as suspicious. If you're running an IDS or IPS that is listening on the local network, check the enforcement logs to ensure this traffic is not getting flagged.

135/TCP
49152-65535/TCP

AD Connector

Domain Controllers/ Event Log Collector

RPC communication to fetch login events

135/TCP

Domain controllers/ Event Log Collector

AD Connector

RCP response

Note: The Digicert domains resolve to various IP addresses based on a CDN and are these subject to change. Currently, these domains resolve to 72.21.91.29, 117.18.237.29, 93.184.220.29, and 205.234.175.175.

If any issues are seen around communication to Umbrella, we recommend checking for any Layer-7 application proxies that might be blocking/dropping some data. A common case is the inspect feature on Cisco devices that act on protocols such as DNS/HTTP/HTTPS:
http://www.cisco.com/c/en/us/td/docs/security/asa/asa72/configuration/guide/conf_gd/inspect.html

You can restart the connector by restarting the OpenDNS Connector service on the connector system. Restarting the connector will trigger a full synchronization of AD objects (and not just the changes from the previous sync) to Umbrella.

If your connector is not in Okay state and you need to raise a support ticket with Umbrella, see Providing Support with AD Connector Logs.
